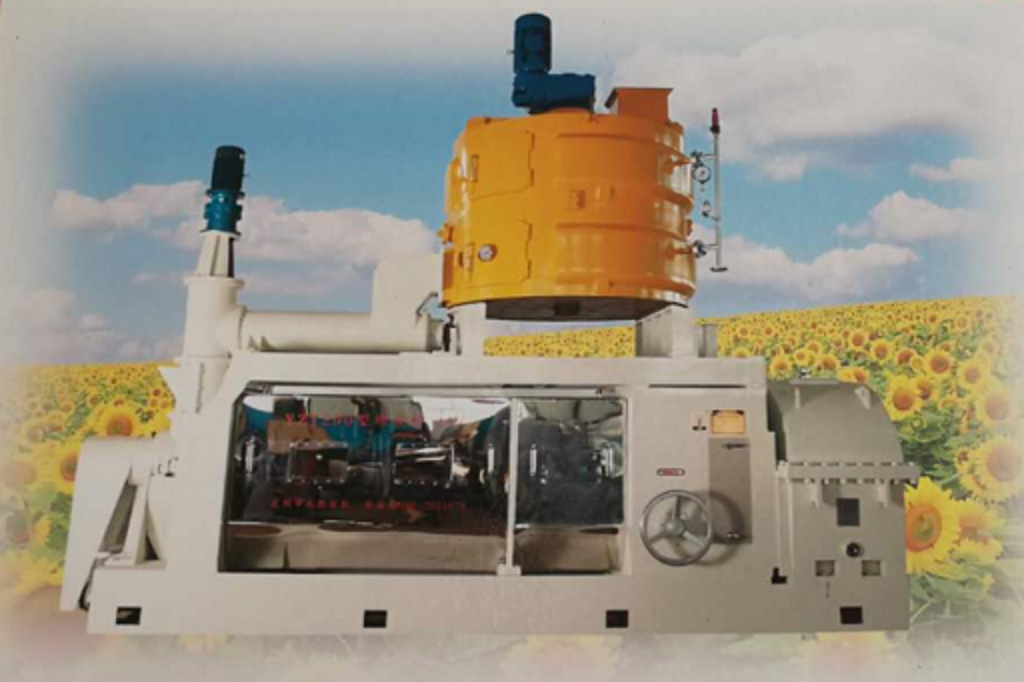

YZY290 single screw oil press
This machine is suitable for large-scale pre-pressing process of various vegetable oils;
The machine has reasonable structure, simple operation, sturdiness and durability; large output and low maintenance rate.
Product Features:
- spiral adopts advanced technology of light pressure, frequent pressure and step pressure, with low residual oil;
- spindle is made of high-quality alloy steel; durable.
- screw screw face with labyrinth seal design; easy assembly, maintenance.
- school cake mechanism using worm gear, worm patent technology, non-stop, easy school cake;
- Steaming frying pan and feeding mechanism are independent hard tooth surface reducer transmission;
Main technical indicators
|
billet Name |
daily processing capacity tons/24hours |
cake thickness (mm) |
dry cake residual oil rate (%) |
Equipped with power (KW) |
Dimensions (mm) long× width × height |
Net weight of equipment (Kg) |
|
cottonseed |
130-180 |
15-20 |
pre-pressing13-17 |
Main motor 132-160 steamer11 Feed3-4 |
3800×2320×3800 |
14500 |
