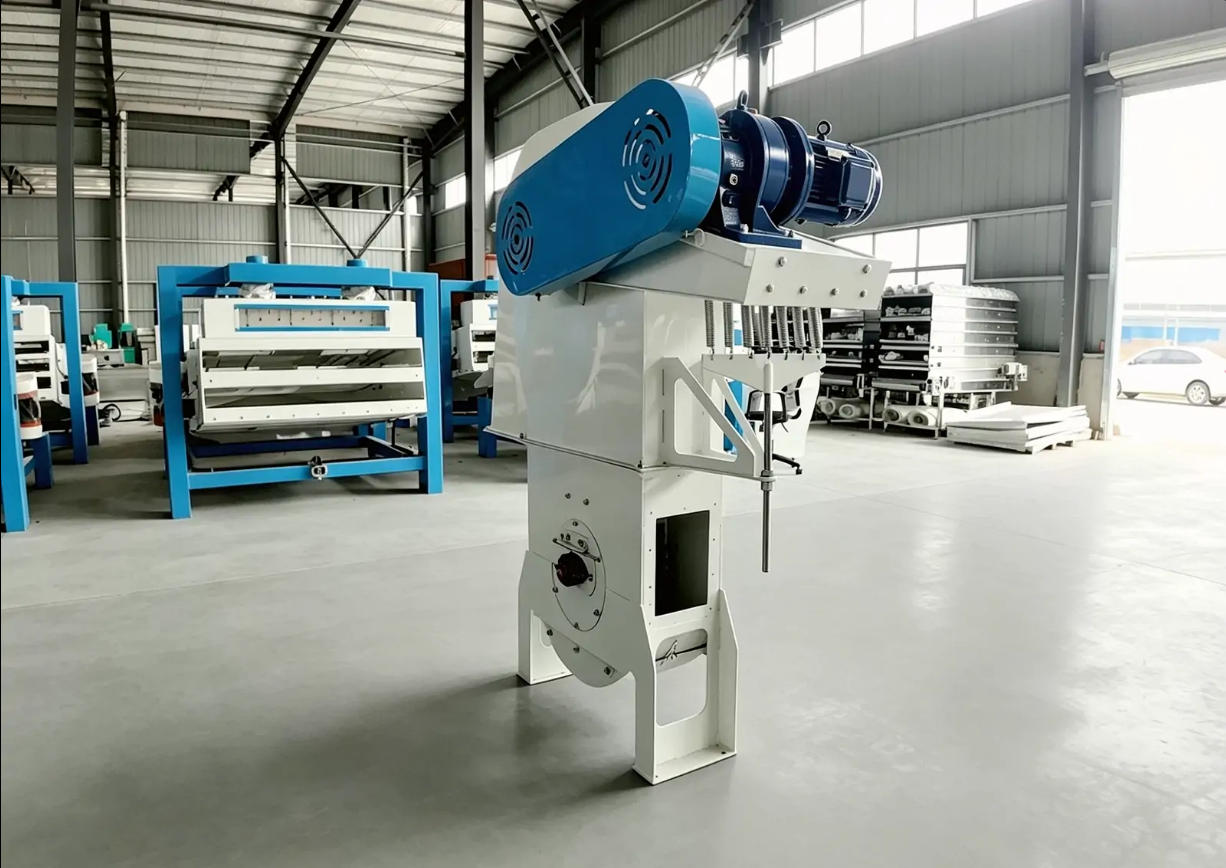

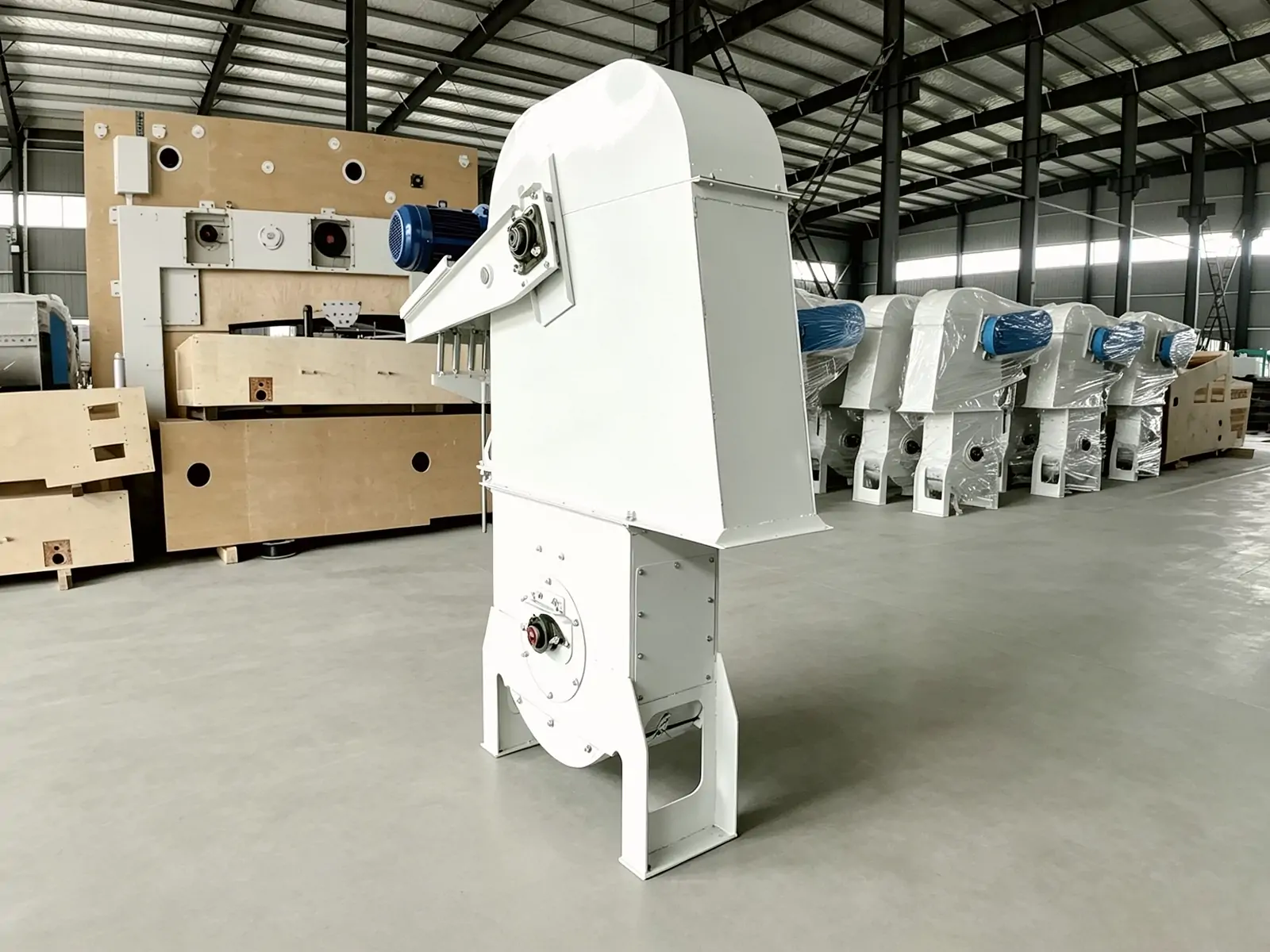

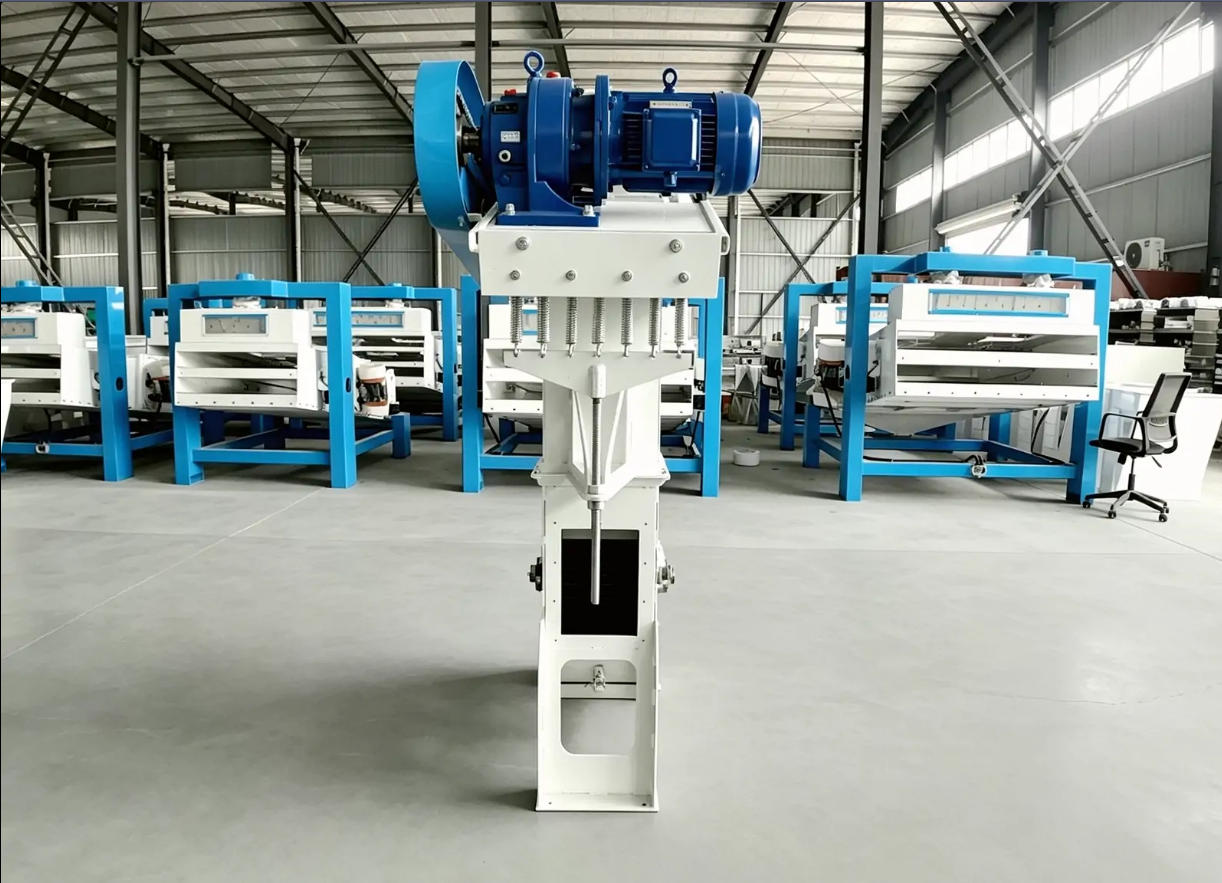

DTY Belt Bucket Elevator

Product Description

DTY Belt Bucket Elevator is a vertical conveying equipment specially designed for coffee bean processing lines. It is mainly used for lifting and transporting green coffee beans, roasted coffee beans and other granular materials between different processing stages.

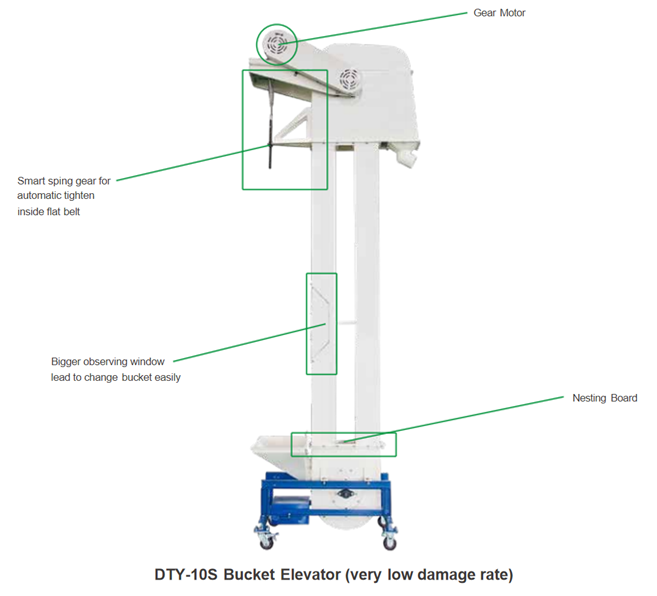

The bucket elevator adopts belt transmission structure with buckets fixed on the belt, which can achieve continuous and stable vertical conveying. It is widely used in coffee cleaning, destoning, grading, color sorting, roasting and packaging production lines.

With advantages of compact structure, high conveying efficiency, low material damage and easy maintenance, the DTY belt bucket elevator helps improve the automation level and production efficiency of modern coffee processing plants.

Main Features

1. Stable Vertical Conveying

The DTY belt bucket elevator adopts a reliable transmission system to ensure smooth operation and continuous material transportation. It is suitable for long-term industrial production.

2. Low Damage to Coffee Beans

The optimized bucket design and suitable lifting speed reduce collision between coffee beans and equipment, minimizing breakage and maintaining product quality.

3. High Conveying Efficiency

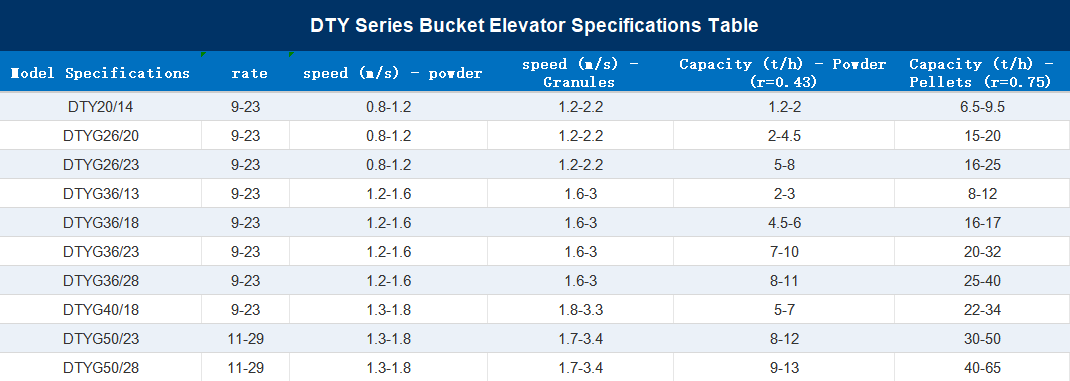

Different models are available according to production capacity requirements. It can meet the needs of small and large-scale coffee processing plants.

4. Compact Structure

The vertical design saves factory space and makes it easy to connect with other coffee processing machines.

5. Customized Design

The lifting height, capacity, bucket material and inlet/outlet position can be customized according to customer's production line layout.

Application

DTY Belt Bucket Elevator is widely used in:

• Green coffee bean processing plants
• Coffee cleaning and sorting lines
• Coffee roasting production lines
• Coffee packaging systems
• Agricultural product processing factories
• Grain and seed processing industries

It can be connected with:

• Coffee Bean Cleaner
• Coffee Bean Destoner
• Coffee Bean Grading Machine
• Coffee Bean Color Sorter
• Coffee Bean Roaster
• Coffee Packing Machine

Working Principle

The motor drives the head pulley through the transmission system. The belt with buckets moves continuously between the head and tail pulleys. Materials are fed into the buckets at the bottom inlet and lifted vertically to the discharge outlet by centrifugal force or gravity discharge.

This continuous conveying method ensures efficient and stable material transportation.
